14.5. User Source Solutions

With the absence of a common User Source, SavaPage can act as Sync Source in PaperCut. Conversely, PaperCut can act as User Source for SavaPage.

However, since PaperCut does not provide an API for User Authentication, in this case an extra shared Authentication Service is required.

14.5.1. SavaPage as Sync Source in PaperCut

With the absence of a common User Source, SavaPage can provide User Sync and Authentication Services for PaperCut. In this way Internal Users can be synchronized to and authenticated in PaperCut.

The interface is implemented as HTTP Basic Auth service. This interface can easily be used in Python or Linux curl scripts.

Sample scripts for use in PaperCut Custom Sync are available in /opt/savapage/server/examples/papercut/

Note

Rate Limiting is applied to unauthorized access.

SavaPage as Sync Source in PaperCut : Configuration Properties

Configuration property

Description

ext.papercut.user.sync.enable

Set to Y or N (default) to enable/disable PaperCut Custom User Sync Integration.

ext.papercut.user.sync.username

Basic HTTP Authentication User name.

ext.papercut.user.sync.password

Basic HTTP Authentication password.

ext.papercut.user.sync.ip-addresses-allowed

The allowed client IP addresses as a CIDR Set.

If void, not a single client is allowed.

See Config Editor on how to set these properties.

14.5.2. PaperCut as User Source in SavaPage

PaperCut can be set as User Source in SavaPage by setting configuration property custom.user-sync.papercut to Y. There are three extra settings needed to make this work:

  1. PaperCut Integration must be enabled, because a connection to the PaperCut Server (XML-RPC API) is needed to select the users that were synchronized by PaperCut from their User Source.

  2. Because User Authentication is not part of the PaperCut API, authentication must be configured as OAuth Client Plug-in that connects to the same User Source configured in PaperCut.

  3. User Source must be disabled by selecting the - option. This will show PaperCut as User Source.

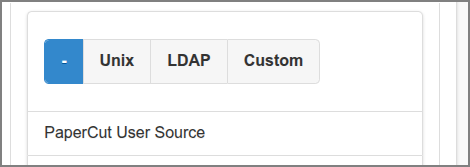

    ../../_images/sp-01-05-options-user-source-papercut.png

    Admin Web App: Options - PaperCut User Source

PaperCut as User Source in SavaPage: Configuration Properties

Configuration property

Description

custom.user-sync.papercut

Set to Y or N (default) to enable/disable PaperCut as User Source.

custom.user-sync.papercut.user-card-number.first-byte

NFC Card Number First Byte: MSB or LSB (default).

custom.user-sync.papercut.user-card-number.format

NFC Card Number Format: DEC or HEX (default).

See Config Editor on how to set these properties.
